[资料，科普] 大气层顶部和海平面的太阳光谱 Solar Spectrum sea level

太阳辐射： solar radiation

太阳辐照度： solar irradiance

地表吸收太阳辐射： net surface solar radiation，NSSR

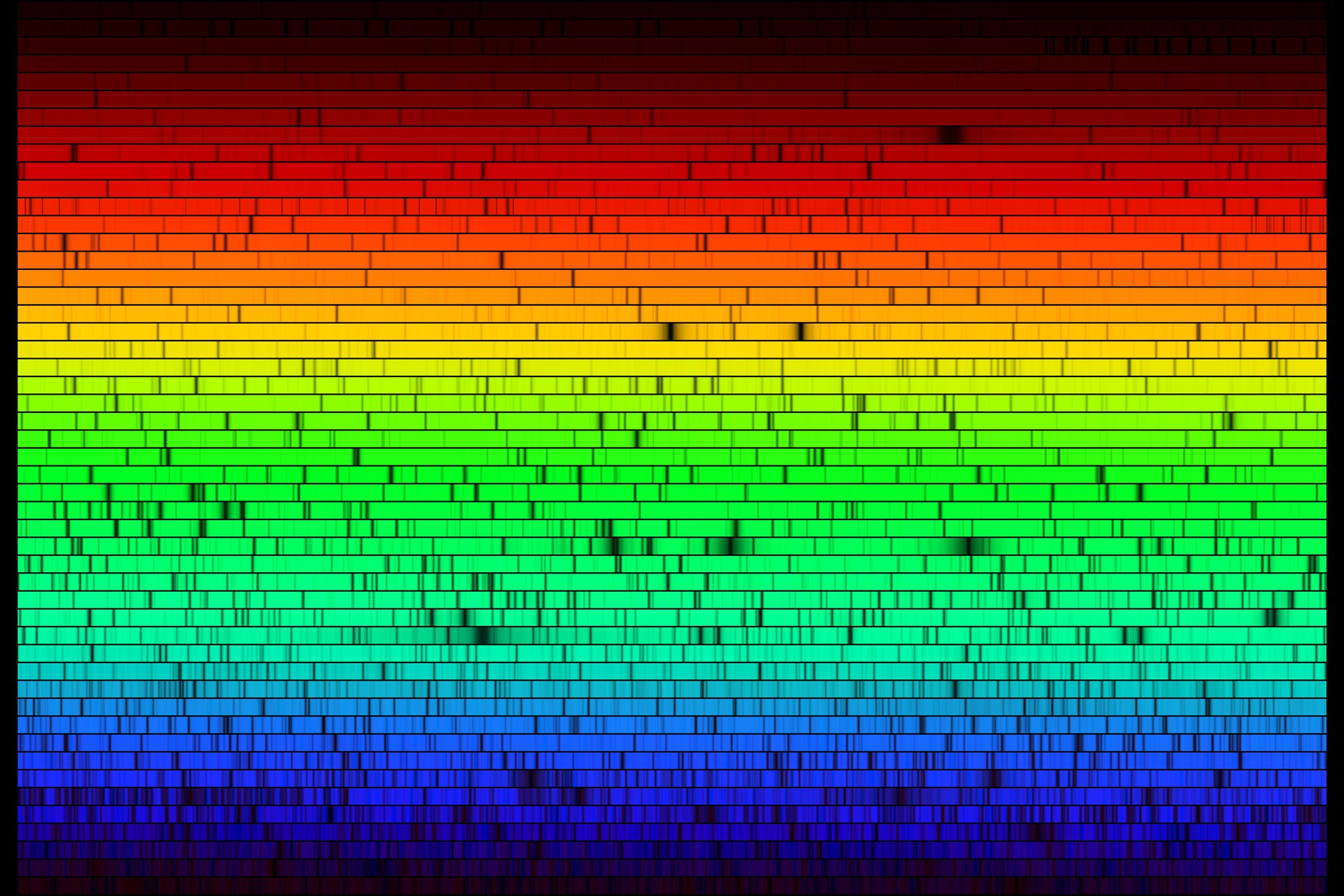

图1  The Solar Spectrum NASA solarspectrum.jpg

https://assets.science.nasa.gov/content/dam/science/psd/solar/2023/09/s/solarspectrum.jpg

图2  tsis-diagram_annotated.png

https://earth.gsfc.nasa.gov/sites/default/files/lab_climate/tsis-diagram_annotated.png

https://earth.gsfc.nasa.gov/climate/projects/solar-irradiance/science

Simulated spectral solar irradiance at the top of the atmosphere (ToA) and the Earth's surface. The different regions of the spectrum include: ultraviolet (UV), visible, near infrared (NIR), and shortwave infrared (SWIR). The range typically covered by SSI is indicated by the broken line at the top. The regions of spectrum where irradiance is absorbed by various atmospheric constituents are indicated, including: ozone (O3), oxygen (O2), water vapor (H2O), carbon dioxide (CO2), and methane (CH4). Graphics by Luke Ellison.

模拟大气层顶部和地球表面的光谱太阳辐照度（ToA）。光谱的不同区域包括：紫外（UV）、可见光、近红外（NIR）和短波红外（SWIR）。SSI通常覆盖的范围由顶部的虚线表示。指示了各种大气成分吸收辐照度的光谱区域，包括：臭氧（O3）、氧气（O2）、水蒸气（H2O）、二氧化碳（CO2）和甲烷（CH4）。

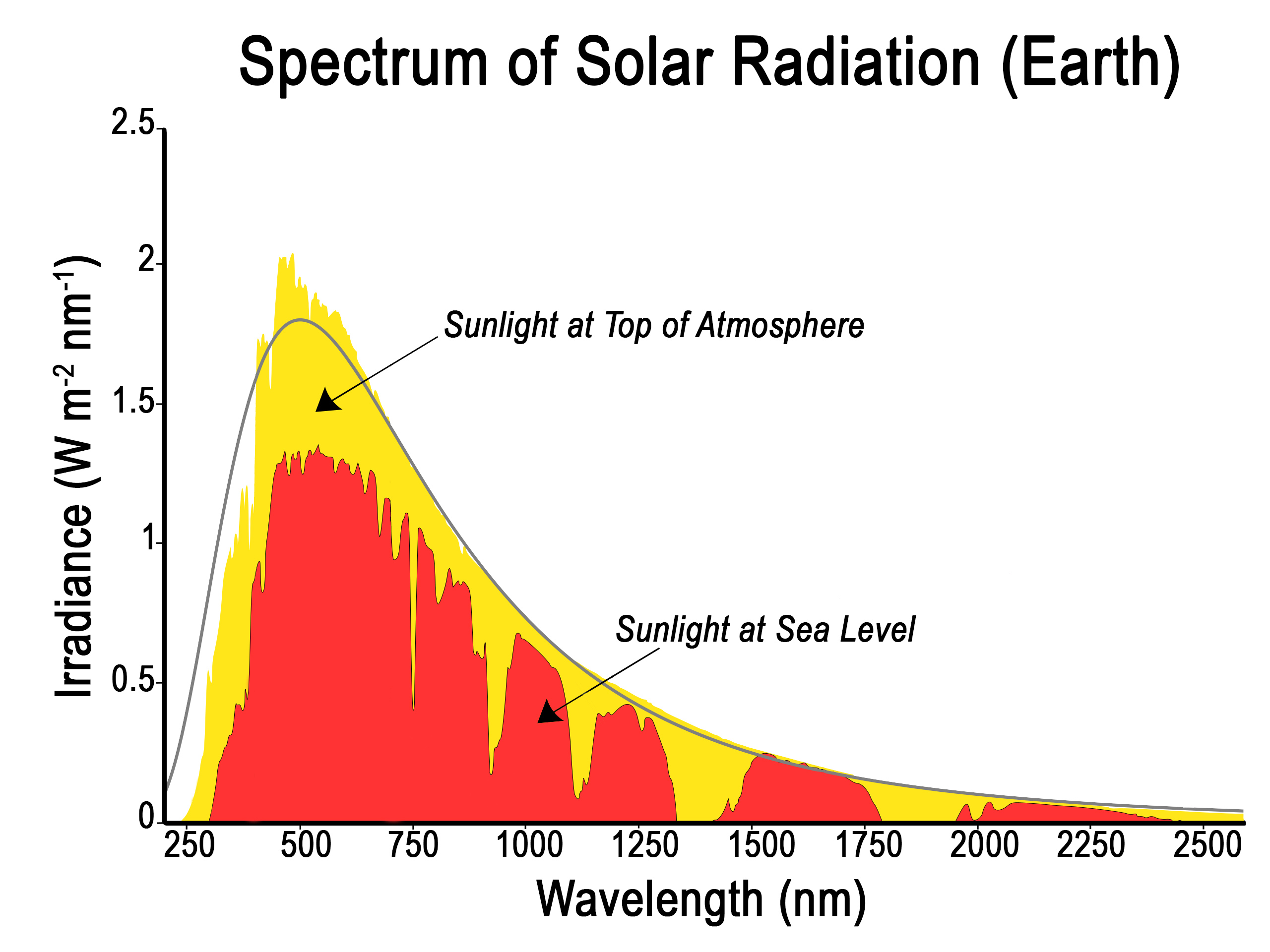

图3  Solar_spectrum_en_v5.jpg

https://pace.oceansciences.org/images/Solar_spectrum_en_v5.jpg

https://pace.oceansciences.org/atmos_light.htm

The spectrum of radiation from the sun that reaches the top of the Earth’s atmosphere (yellow) and at sea level (red). The difference between the two indicates the light that is absorbed by components of the atmosphere. Image from Wikipedia under the CC BY-SA 3.0. Minor edits were made to remove additional labels.

到达地球大气层顶部（黄色）和海平面（红色）的太阳辐射光谱。两者之间的差异表明了大气成分吸收的光。

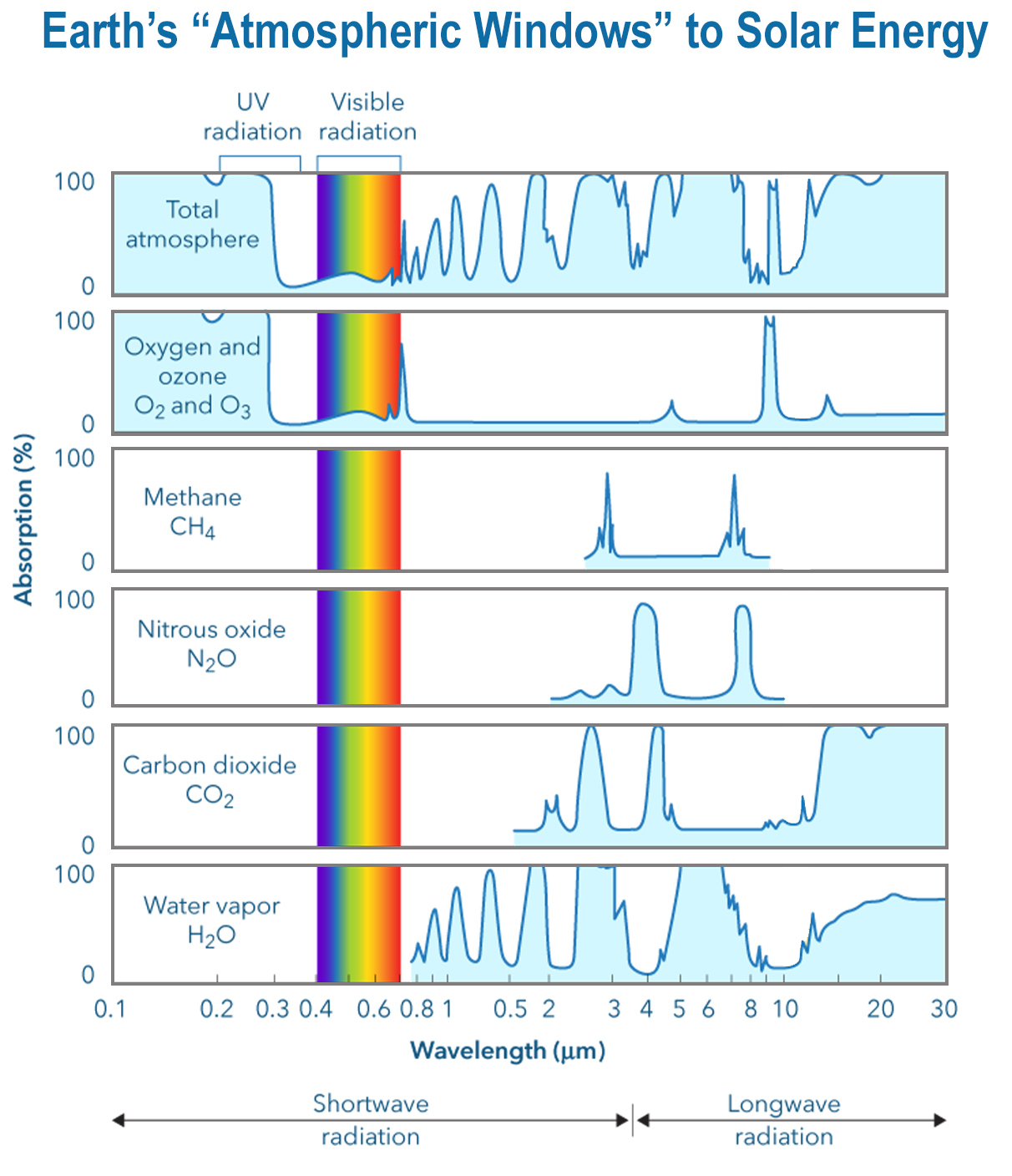

图4  EarthAbsorptionEMSpectrum_AckermanKnox_050123_white_noIR.jpg

https://pace.oceansciences.org/images/EarthAbsorptionEMSpectrum_AckermanKnox_050123_white_noIR.jpg

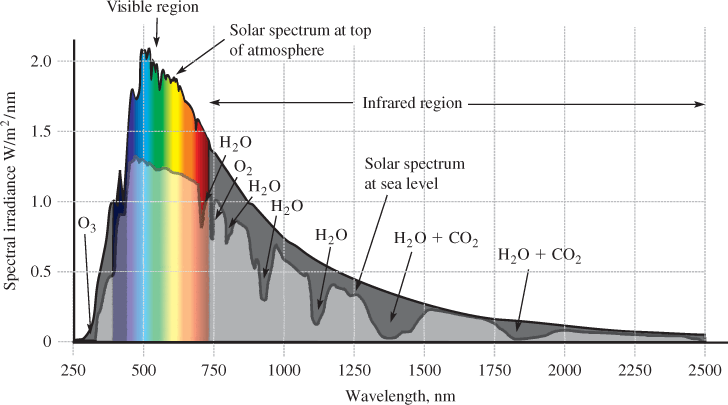

图5  Solar-Spectrum-at-the-Top-of-the-Atmosphere-and-at-Sea-Level.png

https://electricala2z.com/wp-content/uploads/2018/03/Solar-Spectrum-at-the-Top-of-the-Atmosphere-and-at-Sea-Level.png

Solar Spectrum at the Top of the Atmosphere and at Sea Level

大气层顶部和海平面的太阳光谱

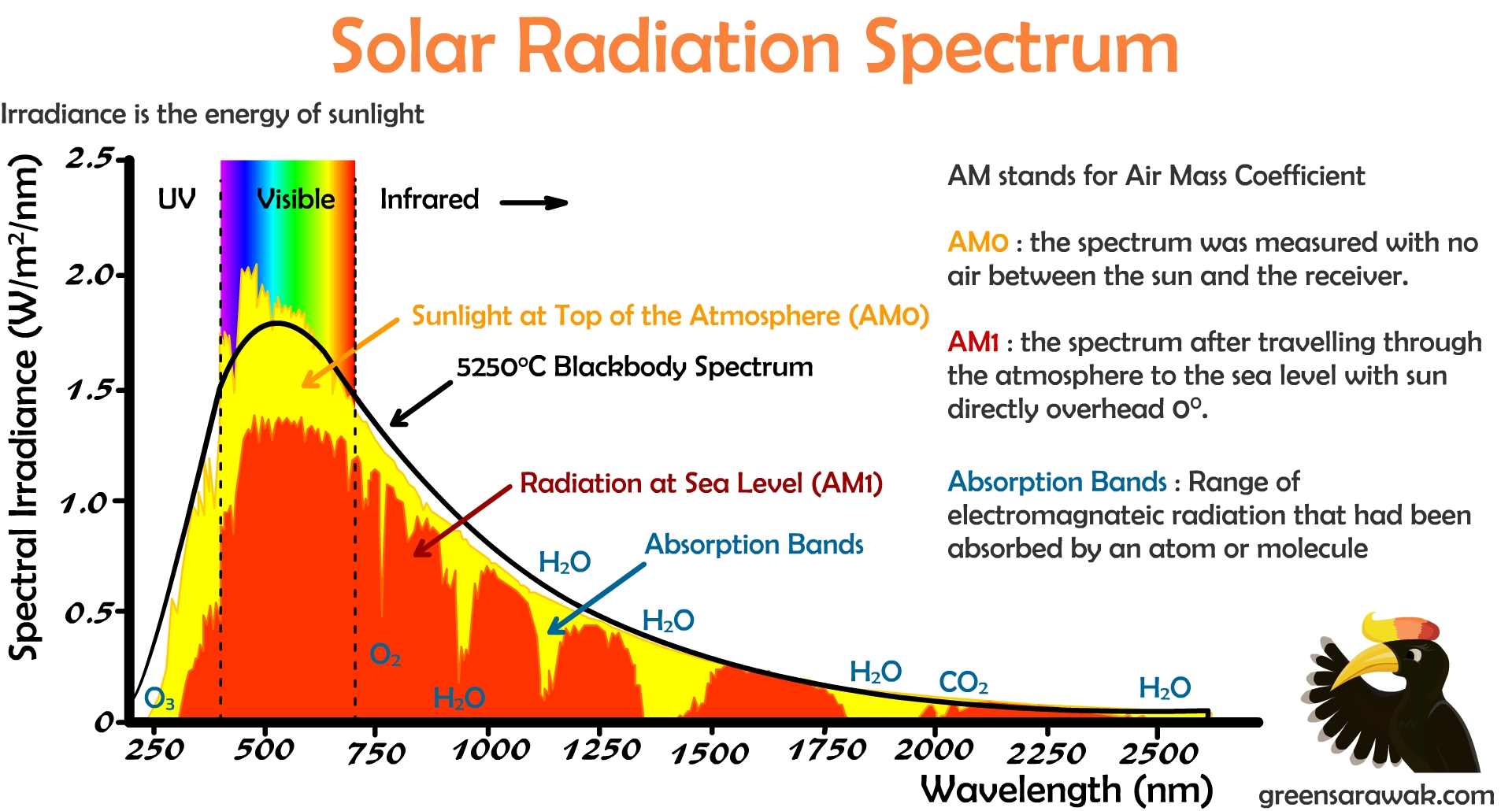

图6  solar_radiation_spectrum.jpg

https://greensarawak.com/wp-content/uploads/2017/11/solar_radiation_spectrum.jpg

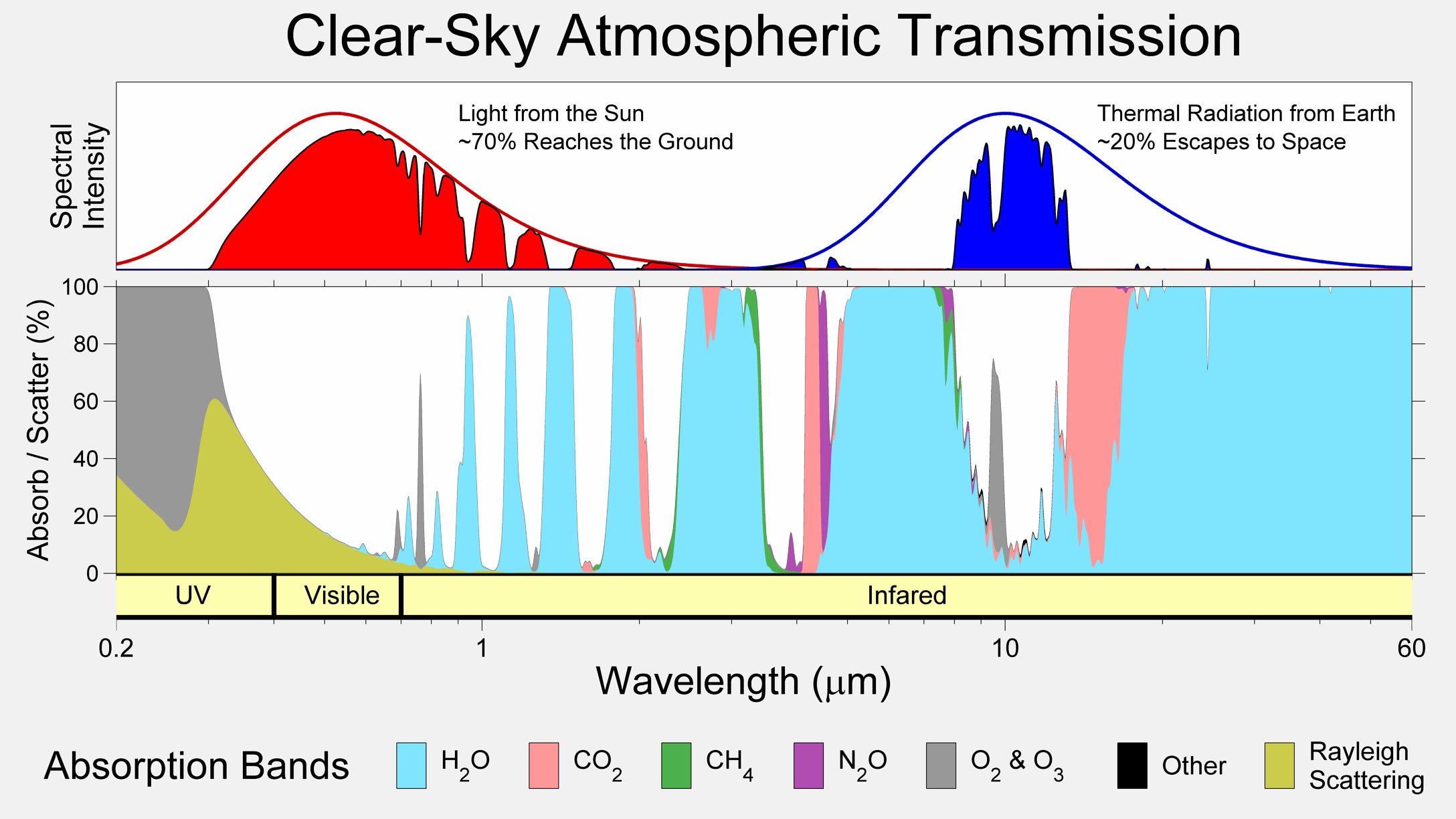

图7  clear-sky atmospheric transmission

https://ts1.tc.mm.bing.net/th/id/R-C.44233d15ac3216114dbcd653ffb9ace2?rik=UgxGq0kW9qQpLg&pid=ImgRaw&r=0

晴天的大气透射

参考资料：

[1] 科普中国，2021-12-31，太阳辐射

https://www.kepuchina.cn/article/articleinfo?business_type=100&classify=0&ar_id=335724

[2] 科普中国，2021-12-31，太阳辐射谱

https://www.kepuchina.cn/article/articleinfo?business_type=100&classify=0&ar_id=347813

[3] 科普中国，2021-12-31，净太阳辐射

https://www.kepuchina.cn/article/articleinfo?business_type=100&classify=0&ar_id=354317

[4] 科普中国，2021-12-31，太阳辐照度

https://www.kepuchina.cn/article/articleinfo?business_type=100&classify=0&ar_id=350579

[5] Solar Irradiance Data, NASA

https://earth.gsfc.nasa.gov/climate/projects/solar-irradiance/data
